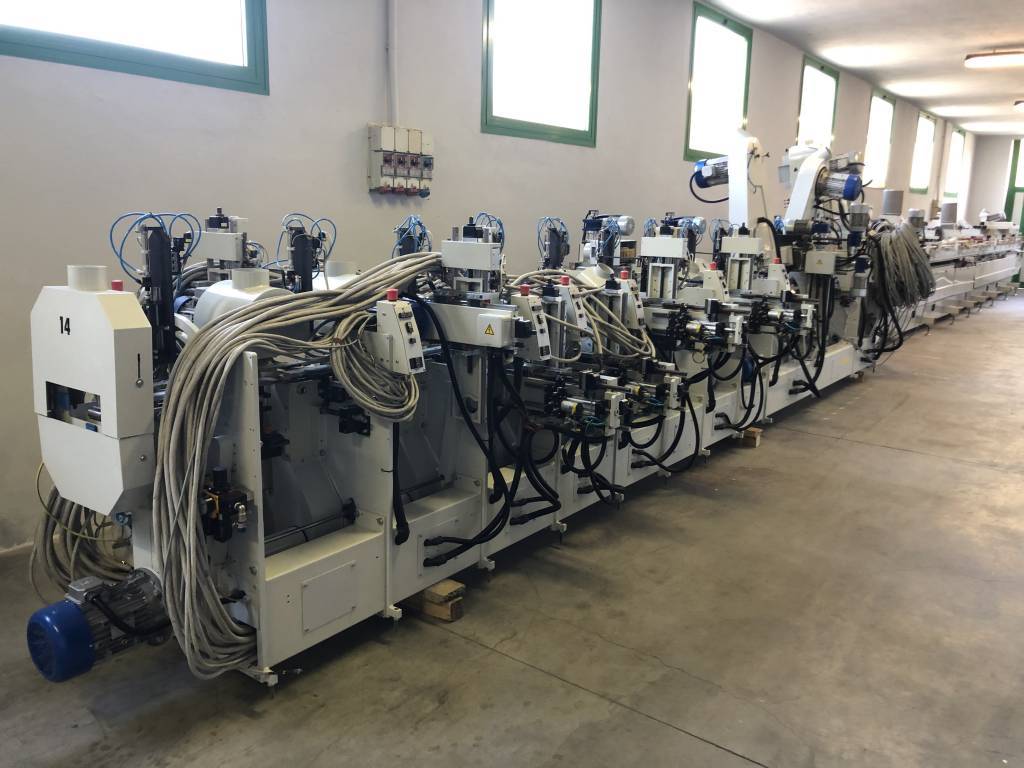

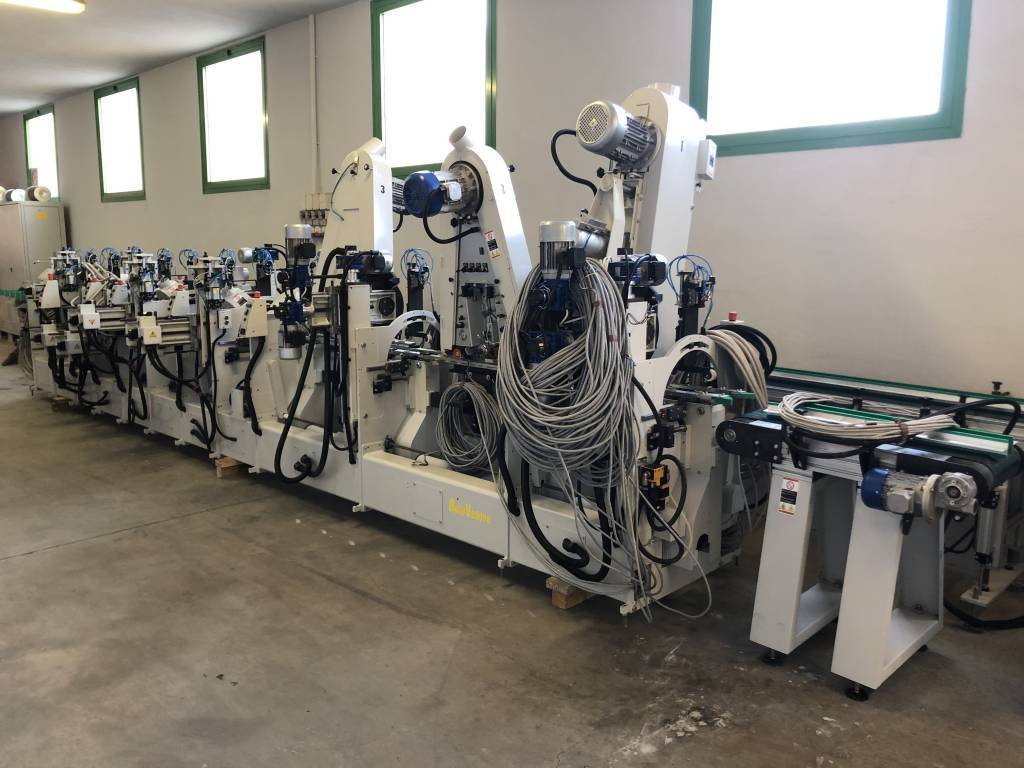

Type BPS200 / 4 3AU 10 BR 1AE.

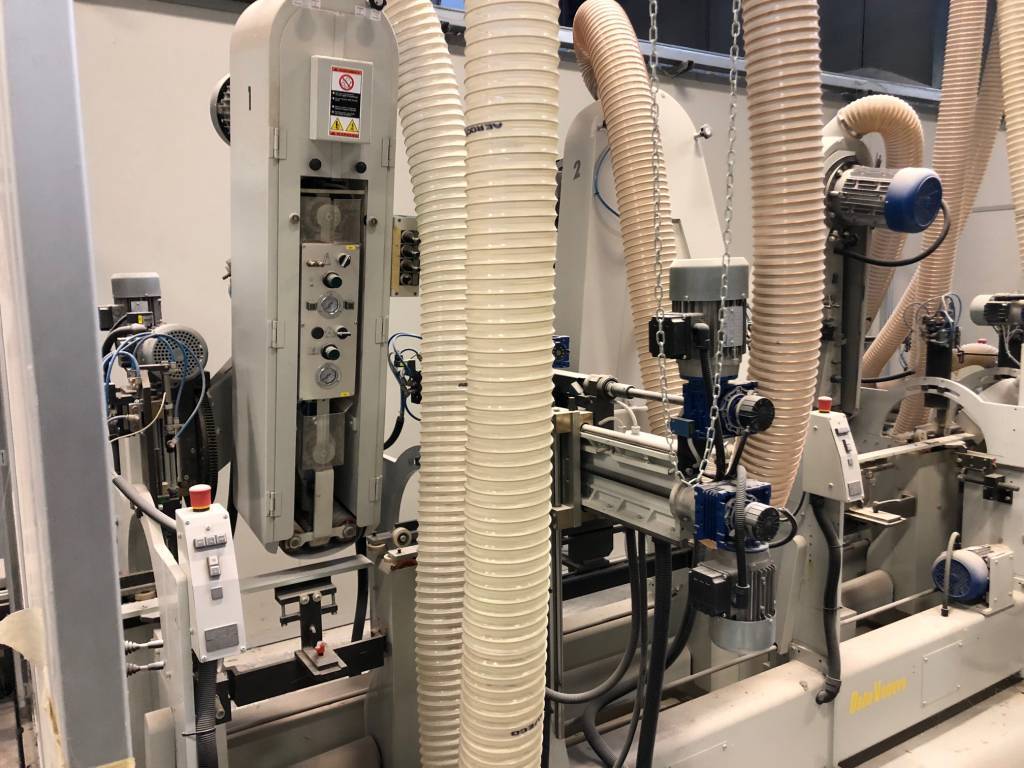

No. 2 shaped belt sanders N0 160 with axis positioning with CNC.
For sanding profiles for painted doors, including wing trims.
The technical solutions adopted allow a rapid setting of the machine according to the shape and type of profiles (less than 3 ') and in the passage between different shapes it will be necessary to change only the pads of the groups to shaped abrasive belts while on the brush units only the speed and position managed by recipe.
First part of the machine equipped with:

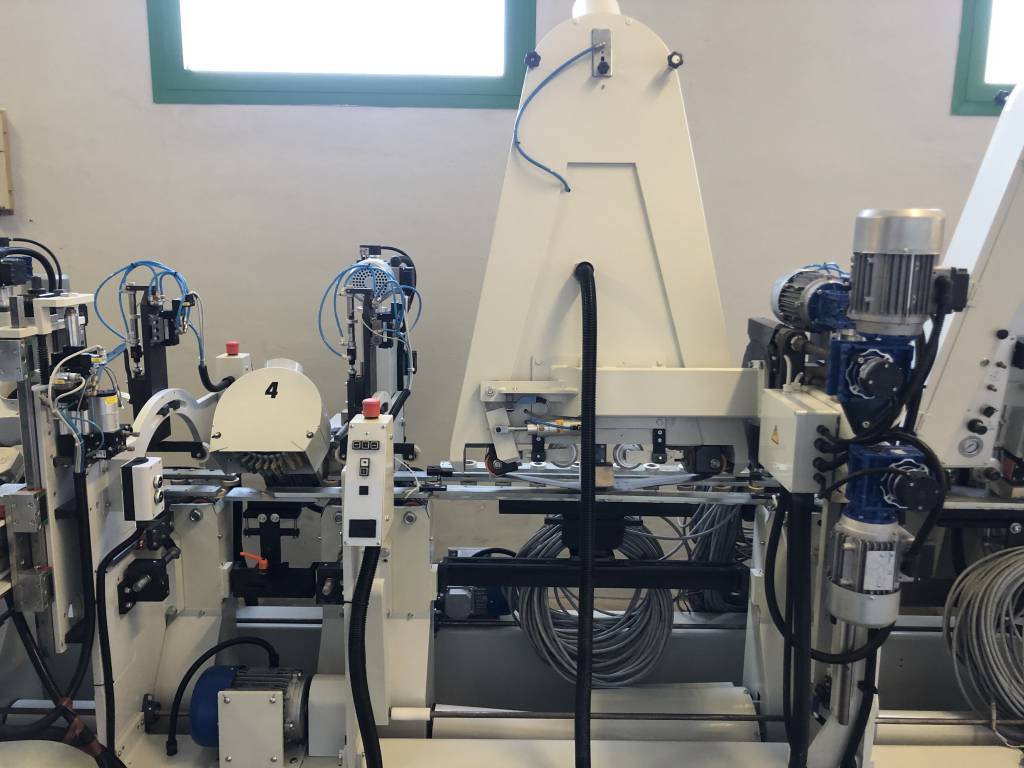

No. 1 TP 220 upper belt sander with vertical CNC positioning.
In the second part of the machine equipped with:

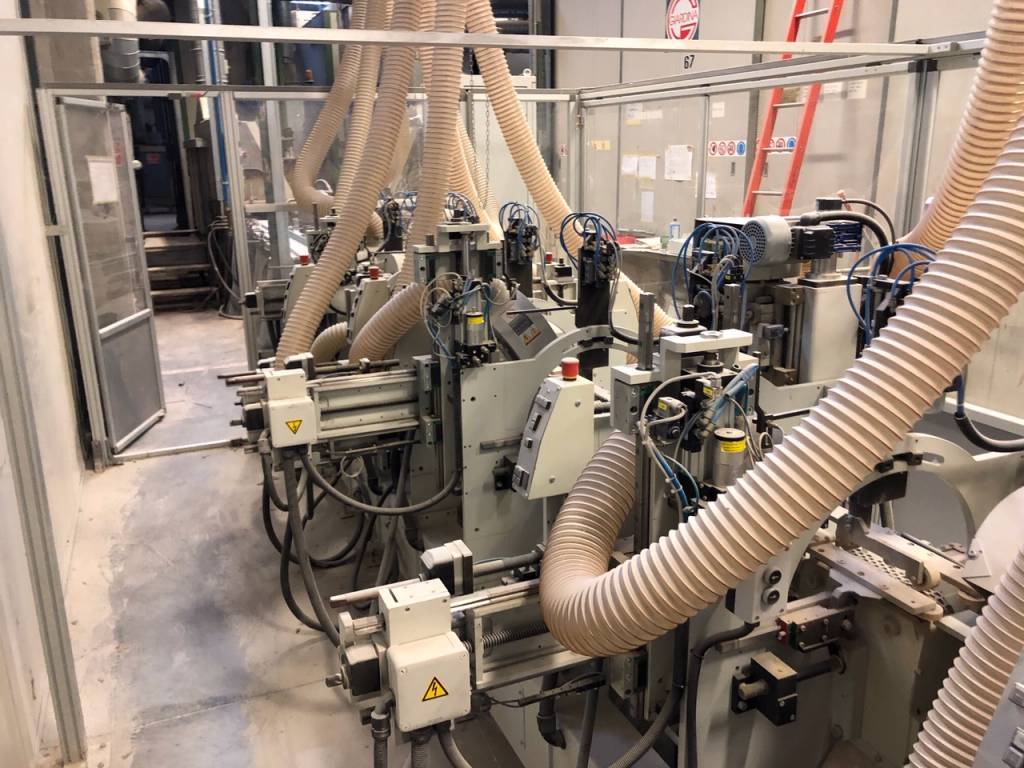

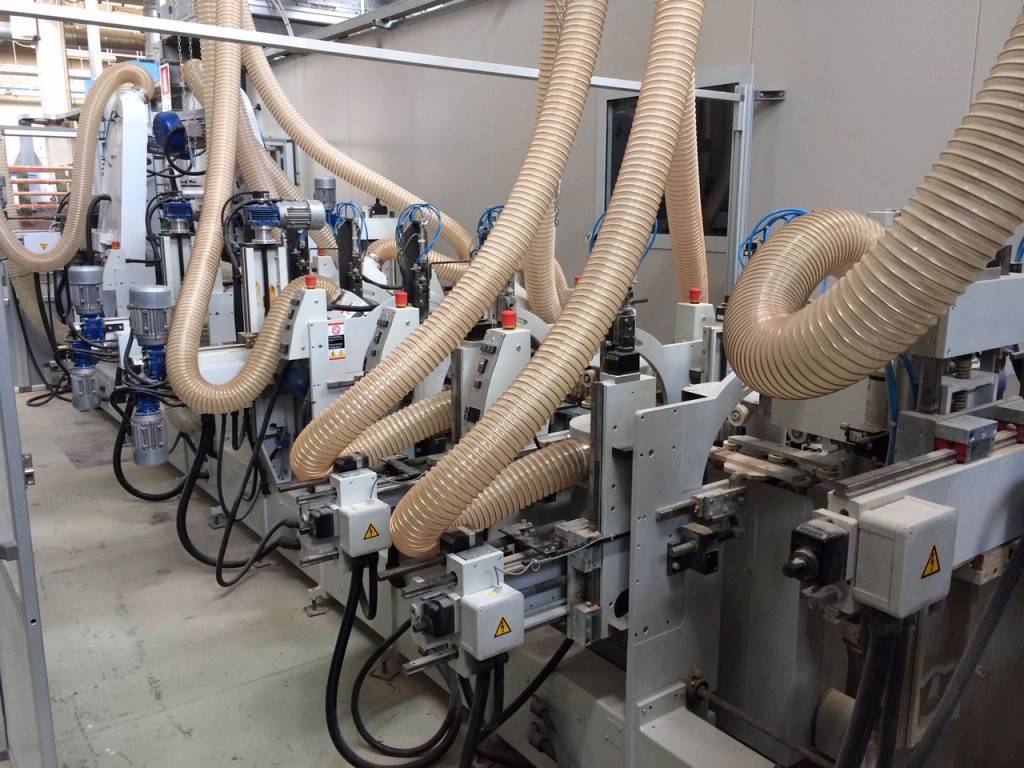

No.10 brush units with 0.75 kW Mod. BR motors with inverter controlled speed (300-1200 RPM) operating with two directions of movement so as to allow working with 2 brushes for each section of the profile (prepared for brushes) flex –trim diameter 240mm).
positioning of the axes, necessary for covering the foreseen shapes, with CNC.
N ° 1 a.c. blower outgoing BX.
All positions are referred to the program and the change of shape / function can be performed automatically after the machine has been emptied (up to 30 ").
Motorized guides with CNC control both left and right shoulder and fixed shoulder for L profiles.
Upper pressers with automatic positioning with CNC control.
Carpet width 70mm.

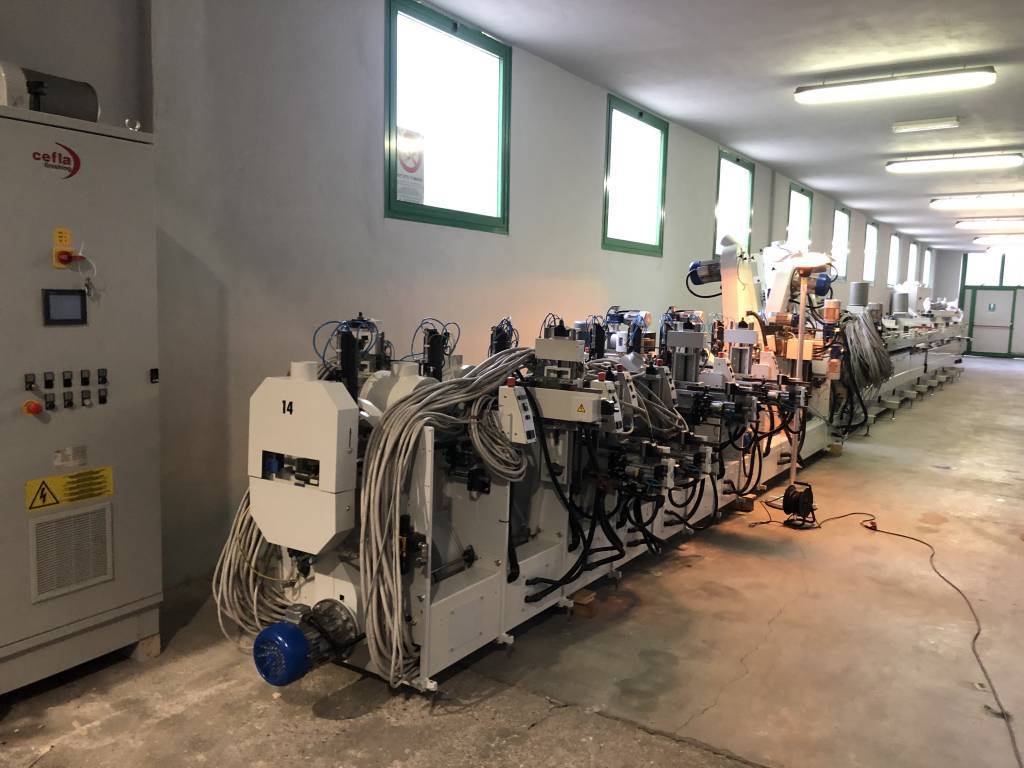

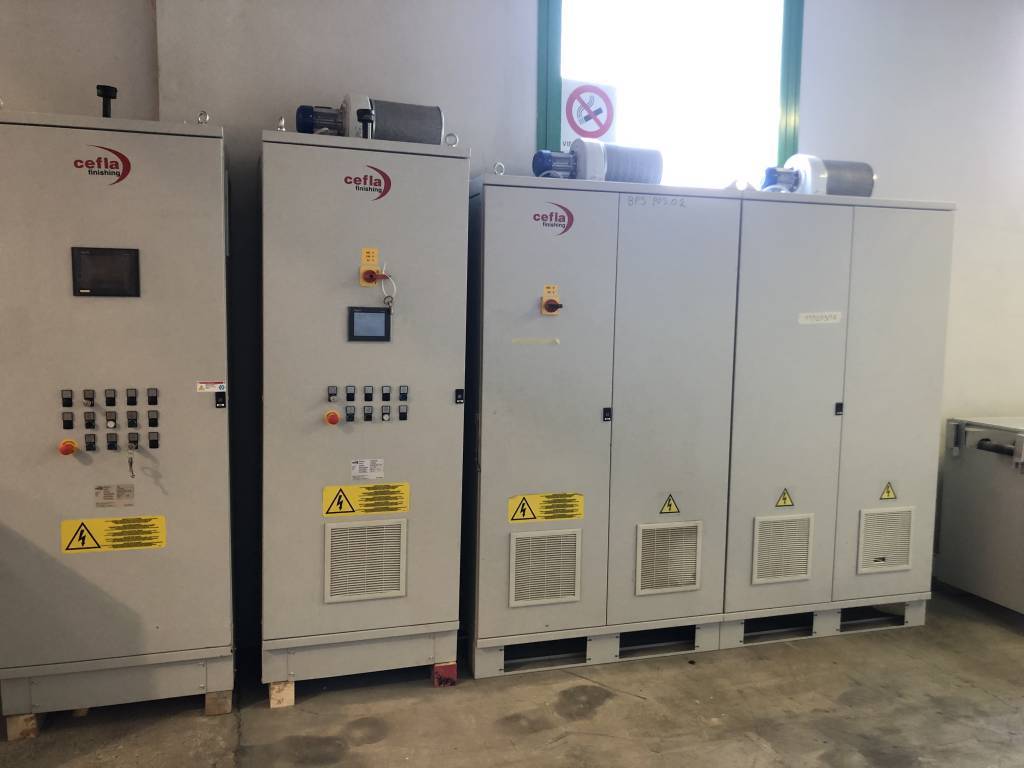

Electrical control and command panel with PLC with Omron computer.
Allows you to recall all the functions according to the work recipe and in detail:
- Work speed.
- Group positioning.
- Speed and sense of work of individual groups.

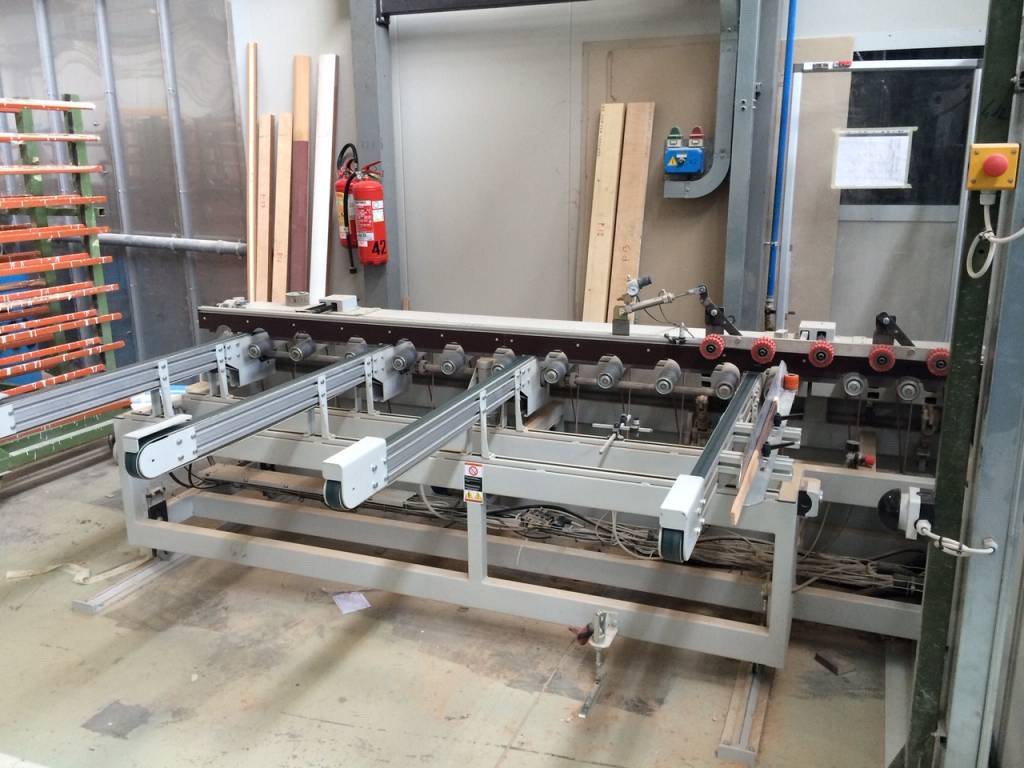

BELT CONVEYOR FOR PROFILES WITH FLIPPING PROFILES, consisting of 1 conveyor:
LT-BELT 3000
Carpet in anti-solvent material.
Advancement by gear motor controlled by inverter.
Side panels with extruded aluminum profiles.
Side guides in anti-friction material.
Length 3000mm.
Belt width 250mm.
Width mx. pieces 240mm.
Feed speed 15/100 m/min.
Installed electrical power 0.55 kW.
Manually tiltable transport at the entrance for corner profiles.
Transport on wheels for flag displacement.
